Butterfly Valves: Uses, Types, Working, Advantages,

What Is A Butterfly Valve?


A butterfly valve is a valve that separates or controls the progression of a liquid. The end system is a circle that turns.


Butterfly valves are among the group of quarter-turn valves and work the same as ball valves. The "butterfly is a circle associated with a bar. It closes when the pole pivots the plate by a quarter go to a position opposite to the stream heading. At the point when the valve opens, the plate is turned back to permit the stream.


Butterfly valves are utilized for on-off or adjusting administrations and are famous because of their lightweight, little establishment impression, lower costs, fast activity, and accessibility in extremely huge sizes. These valves can be worked by handles, cog wheels, or programmed actuators.


There are various types of butterfly valves, each adjusted for various tensions and different use. The zero-offset butterfly valve, which utilizes the adaptability of elastic, has the most reduced pressure rating. The elite exhibition double offset butterfly valve, utilized in somewhat higher-pressure frameworks, is offset from the centerline of the plate seat and body seal (offset one), and the centerline of the drag (offset two).


Portions Of The Butterfly Valve


1. Body


The body of the butterfly valve is the part that fits between the two lines. This thin valve comes in two significant body styles: wafer and drag. The wafer-style body is the most conservative of the two. It is associated with the lines with bolt openings that go through the body of the valve.


2. Circle


The circle of the valve can be either concentric or unpredictable. The least complex of these two is the concentric circle. In the concentric plan, the steam goes through the centerline of the circle. Concentric valves are normally utilized in low-pressure applications.


3. Stem


The stem has two distinct plans: wetted or non-wetted, which alludes to the security of the stem. Non-wetted stems are safeguarded against any possible destructive or erosive media in the line. Wetted stems are not safeguarded against these and, in this manner, should be made of material that is viable with the media moving through the line.


4. Seat


The seat of a butterfly valve is made of various elastomers or polymers and is either clung to the body or squeezed or secured. The seat runs along the internal breadth of the valve. At the point when the plate presses alongside the seat, they seal together to stop the stream.


Kinds Of Butterfly Valves


There are 3 principal classes of butterfly valves: Rubber-lined, Plastic-lined, and Metal.


  • Rubber-Lined Valves: Less costly valves for non-requesting, non-grating, lower temperature applications. Ordinarily for 150-300# (PN10-25) spines


  • Plastic-Lined Valves: For use with unforgiving synthetic compounds, ultrapure applications, sterile, or grating applications. Regularly for 150# (PN10/16) spines


  • Metal Valves: For high-strain or high-temperature applications, or those requiring imperviousness to fire. Can be utilized in 150-2500# (PN10-160) ribs. Can be Single Offset, Double Offset, or Triple Offset


Zero Offset Butterfly Valve


A zero offset plan is utilized for the valve that is utilized in low-tension and temperature administrations. In this plan, the plate and shaft hub is concentric with the valve body. In the vacant position, the plate separates the stream into equivalent parts, with the circle in the center and lined up with the stream.


This kind of valve has a strong seat. Fixing is accomplished when the circle twists the delicate seat. There is rubbing between the plate and seat during the full working cycle which is the detriment of a zero offset valve.


Double Offset Butterfly Valve


In Double Offset, the circle is offset from the valve community line and the valve body centerline. This makes a cam activity during activity that lifts the seat out of the seal.


Double offset makes opening and shutting smooth as rubbing is relevant just during the initial not many levels of opening and last couple of levels of shutting, approx. 10 levels of opening and shutting.

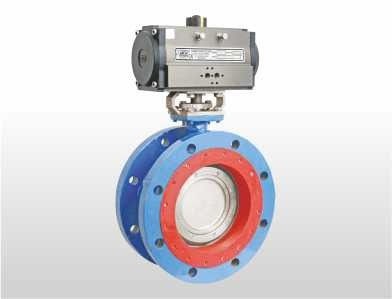

Aira Euro Automation is the leading double-flanged triple offset butterfly valve manufacturer in India. We offer various industrial valves like ball valves, butterfly valves, control valves, plug valves, and many more.





Triple Offset Butterfly Valve


In the Triple Offset Butterfly Valve plan, the third offset is made by the math plan of the seating surface. The seat is machined into an offset tapered profile bringing about a right-calculated cone.


This guarantees frictionless stroking all through its working cycle. Contact is just made at the last reason behind the conclusion with the 90° point going about as a mechanical stop; the Metal situated valve utilizes a triple offset plan.
